Ride-on machine with extra batteries and ramp attachment
Breaking down barriers of large spaces

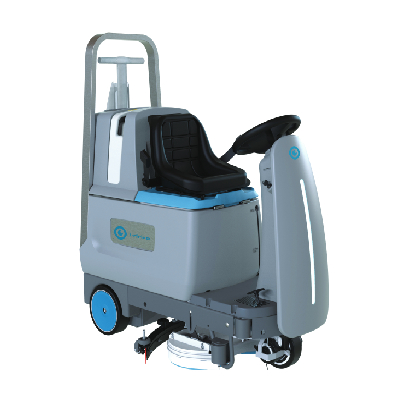

I-team Global’s i-drive:
Existing ride-on machines have a specific limitation working for only large areas. Moreover, with the gel battery operations, one cannot use them 24/7.
Features:
- With the extra set of batteries, it can work 24/7
- With a separate attachment at the back with a ramp, one can have an I Mop Lite with the machine, which breaks down the barrier of large spaces, helping take care of small and micro spaces as well.
- Operator has time to rest while cleaning
- Very flexible and offers excellent maneuverability
- On-board filling station for I mop lite.
- In reverse, the squeeze & brushes retract automatically
| Technical Specifications | |
| Theoretical performance (m2/h) | 2745 |
| Theoretical performance per tank (m2/tank) | <5000 |
| Working width (cm) | 61 |
| Brush system (disc ) | 2 x 31 disc |
| Brush system offset (cm) | None |
| Squeegee width (cm) | 63 |
| Solution/Recovery tank (litre) | 58/55 |
| Battery autonomy (h) | 1.5 ( Can be used 24/7) |
| Charging Time | 1 |
| Machine weight net (kg) | 208 |
| Machine weight ready to use (without operator) (kg) | 349 |
| Dimensions L x W x H (c m) | 146 x 60 X 125 |
| Machine pass through without squeegee (cm) | 61 |
| Working speed (km/h) | 4.5 |
| Noise level (dB(A)) | < 63 |
| Turning radius (c m) | 166 |
| Solution control | Manual/Intelliflow |
| On-board dosing | Yes |
| On-board charging | Not needed |
| Offboard Charging | Yes |
| Adjustable Seat & Steering Height | Yes |
| Squeegee/Brush deck lifting | Electrical |
| Auto lifting of Brush & Squezee while reverse | Yes |
| Machine tilt prevention | Electrical + Mechanical |
| Complete solution approach | Yes |
| Li-Ion Battery | Yes |
| Filling Station for Other Usage | Yes |
| Ramp Provision | Yes |
| 24/7 Working Possibility | Yes |
| Base Mounted Lights | Yes |
| Can Operator Rest While Cleaning | Yes |
| Carrier Space | Yes |
| Possibility of Cleaning Microspaces | Yes |
